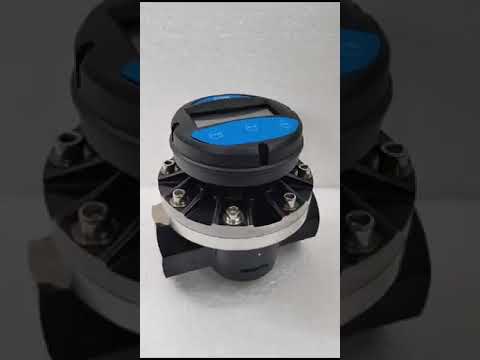

Digital Oval Gear Diesel Oil Flow Meter
Roll over image to zoom in
₹11,200.00 – ₹26,550.00 (Inclusive of GST 18%)
Quick Features
- High Accuracy LCD Display
- Battery Powered
- Easy to Install, Read & Operate
- Low Pressure Drop
- Compact Size Easy Maintainance
- 7 Digit Non Resettable Totaliser
- 5 Digit Resettable Totaliser
- Sizes : 25mm, 40mm, 50mm
- Connection / Mounting : Screwed / Threaded Ends
- Application : All Types of Oil, Diesel, LDO, HSD etc
PLEASE SELECT YOUR REQUIRED SIZE FROM THE OPTIONS BELOW :-
Technical Specifications :-
| Model | ASP-E-25 | ASP-E-40 | ASP-E-50 |
| Size | 25mm (1 Inch) |
40mm (1.5 Inch) |
50mm (2 Inch) |
| Max Flow Rate | 120 L/MIN | 250 L/MIN | 300 L/MIN |
| Min Flow Rate | 20 L/MIN | 25 L/MIN | 30 L/MIN |
| Accuracy | 0.50% | 0.50% | 0.50% |
| Repeatability | 0.30% | 0.30% | 0.30% |
| Viscosity Max | 1000 CPS | 1000 CPS | 1000 CPS |
| W.Pressure | 3.4 MPA | 1.8 MPA | 1.8 MPA |
| Amount | 0 – 999999.99 | 0 – 999999.99 | 0 – 999999.99 |
| Volume | 0 – 999999.99 | 0 – 999999.99 | 0 – 999999.99 |
Additional information
| Weight | N/A |
|---|---|
| Size | 25mm (1 Inch) Flow : 20-120 L/MIN, 40mm (1 Inch) Flow : 25-250 L/MIN, 50mm (1 Inch) Flow : 30-300 L/MIN |
| Sizes : | 25mm, 40mm, 50mm |
| Brand | ASCORP |
| Body : | Aluminium Anodized |
| Display | Digital LCD |
| Totaliser : | 7 Digit |
| Resettable Totaliser | 5 Digit |
| Connection : | Screwed / Threaded Ends |
| Working Principle : | Oval Gear |
| Accuracy : | 0.5 percent Plus / Minus |
| Viscosity : | 1000 CPS |
| Application | Diesel, etc, Heavy Oil, Light Oil |
| Power Supply : | 2 x AAA Batteries |
| Repeatability :? | 0.30% |
